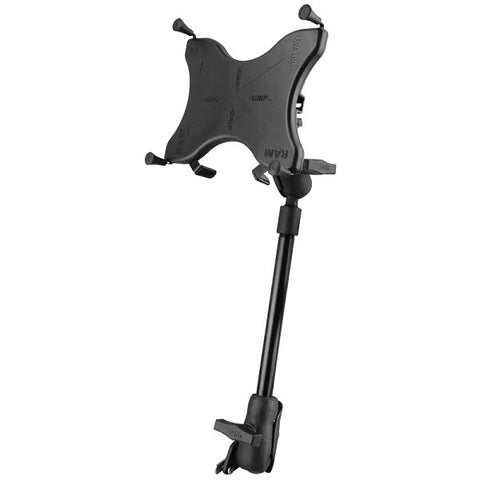

RAM® X-Grip® Wheelchair Seat Track Mount for 9"-10" Tablets (RAM-238-WCT-9-UN9)

  • $434.00
    Ex. Tax: $434.00


RAM-238-WCT-9-UN9

This kit includes a C size RAM® diamond ball base with a universal hardware pack that accommodates the seat track on most major wheelchair brands, including Invacare, Permobil, and Quickie. With the included short single socket arm, pipe extension, and double socket arm, connect the RAM® X-Grip® universal holder for 9”-10” tablets. The spring-loaded RAM® X-Grip® provides a perfect fit for your tablet and can be easily adjusted to the ideal position.

Features & Specs:

  • Hardware Included: Assembly Hardware, (2) #10-32 T-Nuts, (2) #10-32 Flat Weld Nuts, (2) #10-32 x 1/2" Machine Screws, (2) M4 x 12mm Machine Screws, (2)M4 x 20mm Machine Screws, (2) M4 Stainless Steel Washers, (2) M4 Nylock Nuts
  • Holder Dimensions: Max Height: 10.25" (using optional supports), Width Range: 6.25" - 8.1", Max Depth: .875"
  • T-Bolt Dimensions: Large: .48" x .95", Small: .375" x .593"
  • Hole Pattern: 2-Hole AMPS 1.912"
  • Ball/Socket Size: C Size (1.5")
  • Weight Capacity: Standard Use: 4 lbs, Heavy-Duty Use: 3 lbs
  • Materials: Marine-grade aluminum, High strength composite
  • Packaging Type: Retail Bag
  • Weight: 2.81 lbs.

Package Content:

  • 1 x RAM® X-Grip® Wheelchair Seat Track Mount for 9"-10" Tablets (RAM-238-WCT-9-UN9)
