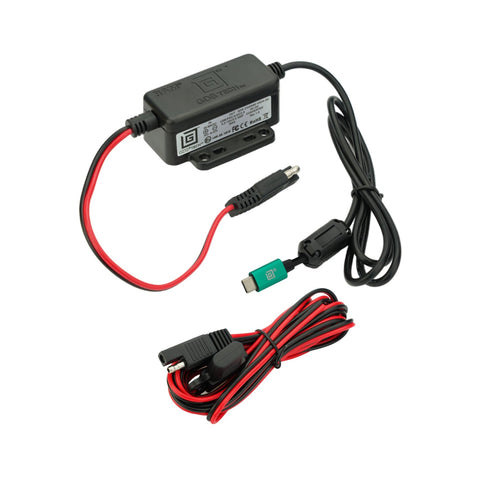

GDS® Modular 30-64V Power Delivery Hardwire Charger with Male USB Type-C (RAM-GDS-CHARGE-V3CH-2U)

The GDS® Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Charger delivers up to 15V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger supports Power Delivery.

• Hardwire charger includes USB Type-C male connection with input of 30-64VDC and output of 5-15VDC Supports Power Delivery
• When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
• Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
• Backed by a 3-year warranty

• Input Voltage: 30-64VDC
• Output Voltage: 5-15VDC
• Output Current: 3A max
• Input Connector: Bare Wire
• Input Cable Length: 2.5 Meters
• Output Connector: USB Type-C Male
• Output Cable Length: 1 Meter
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance:
  • Over Voltage Protection
  • Short Circuit Protection
  • Reverse Polarity Protection
  • RoHS Compliance
  • WEEE Compliance
  • SAE J-1113-5 Load Dump (Transient Voltage)
  • Moisture Resistant
• Certifications:
  • CE Certification
  • RCM Certification
  • FCC Certification
  • UL 62368-1 Certification
• Warranty: 3 year warranty
• Weight: 0.47 lb

• 1 x GDS® Modular 30-64V Power Delivery Hardwire Charger with Male USB Type-C (RAM-GDS-CHARGE-V3CH-2U))
