RAM-HOL-SAM58PD2CLU RAM Combo Locking Power + Dual USB Dock for Tab Active3 & Tab Active2-image-1

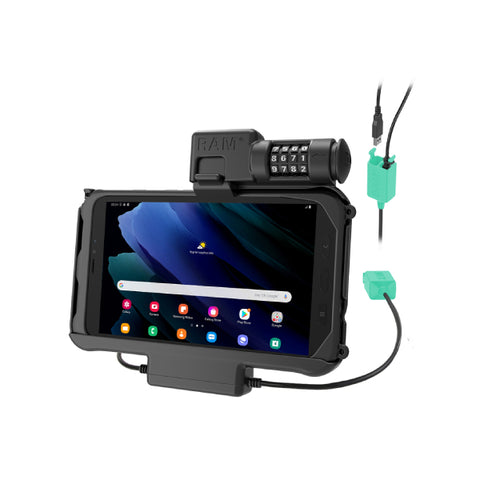

RAM® Combo Locking Power + Dual USB Dock for Tab Active5 & 3 (RAM-HOL-SAM58PD2CLU)

  • $271.00
    Ex. Tax: $271.00


"This RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB-A port supporting up to two peripherals making this the ideal, compact mounting solution for your mobile workstation. For security and theft deterrence, this powered cradle features a combination lock. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any B or C size RAM® components containing the universal 4-hole AMPS pattern.
Features & Tech Specs
  • Combination locking powered cradle provides charging and data transfer capabilities for the Samsung Galaxy Tab Active5, Tab Active3, and 2 through integrated pogo pin connector
  • Dual USB-A port supports up to two peripherals; mUSB port for power
  • Contains 4-hole AMPS hole pattern for RAM® ball components
  • Access to speakers, mics, headphone jack, and NFC reader remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
  • Backed by a 3-year warranty
  • Width: 9.25""
  • Height: 7.75""
  • Depth: 3""
  • Hole Pattern: 4-Hole AMPS: 1.181"" x 1.496""
  • Materials: High strength composite
  • Packaging Type: Poly Bag
  • Input Voltage: 4.4-5.4VDC (USB power source dependent)
  • Output Voltage: 4.4VDC-5.4VDC (USB power source dependent)
  • Power Output: 500mA per USB port
  • Input Connector: mUSB 2.0 Female
  • Input Cable Length: 214mm
  • Output Connector: (2) USB 1.1 Type A
  • Output Cable Length: 217mm
  • Transfer Speed: 12Mbps
  • Warranty: 3 year warranty
  • Weight: 1.15 lb
  • Additional Information: This product will not support the ""No Battery Mode"" function of the Tab Active3. To support ""No Battery Mode"", see RAM® Tough-Case™ options
Package Contents
  • 1 x RAM® Combo Locking Power + Dual USB Dock for Tab Active5 & 3 (RAM-HOL-SAM58PD2CLU)
