RAM® Powered Dock for Tab Active5 & 3 with Hardwire Charger (RAM-HOL-SAM60P-V7B1U)

  • $176.00
    Ex. Tax: $176.00


RAM-HOL-SAM60P-V7B1U

"This powered cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. This cradle is also compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS® USB 2.0 cable, cable clamp with zip ties, and a vehicle hardwire charger.
Features & Tech Specs
  • RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3, and 2 through integrated pogo pin connector and mUSB cable
  • Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
  • Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
  • Vehicle hardwire charger included
  • Backed by a 3-year warranty
  • Width: 9.24""
  • Height: 6.34""
  • Depth: 2.57""
  • Hole Pattern: 4-Hole AMPS: 1.181"" x 1.496""
  • Materials: High strength composite
  • Packaging Type: Poly Bag
  • Input Voltage: 10-30VDC
  • Output Voltage: 5-9VDC*
  • Output Current: 2.5A max
  • Input Connector: mUSB 2.0
  • Input Cable Length: 214mm
  • Operating Temperature: -10°C to +70°C
  • Storage Temperature: -40°C to +70°C
  • Regulatory:
    • Over Voltage Protection
    • Short Circuit Protection
    • Reverse Polarity Protection
    • RoHS Compliance
    • WEEE Compliance
    • SAE J-1113-5 Load Dump (Transient Voltage)
    • Moisture Resistant
    • FCC, CE, UKCA, IC
  • Certifications:
    • E-Mark Certification
    • RCM Certification
    • IEC/UL 62368-1
  • Warranty: 3 year warranty
  • Weight: 1.05 lb
  • Additional Information: *5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
  • This product will not support the ""No Battery Mode"" function of the Tab Active3. To support ""No Battery Mode"", see RAM® Tough-Case™ options

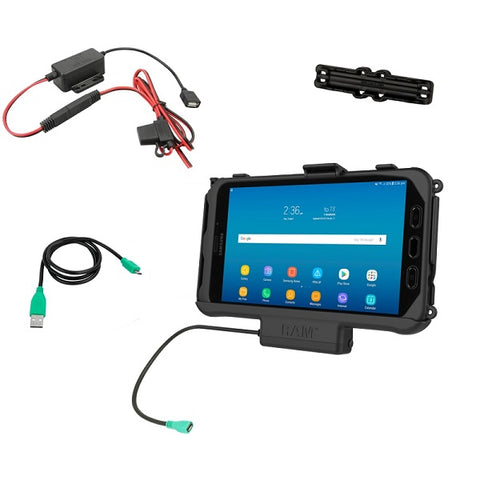

Package Contents
  • 1 x RAM® Powered Dock for Tab Active5 & 3 with Hardwire Charger (RAM-HOL-SAM60P-V7B1U)
