RAM® Single Pivot Magnetic Mount (RAP-101-PV4-NK-MAG88U)
RAP-101-PV4-NK-MAG88U

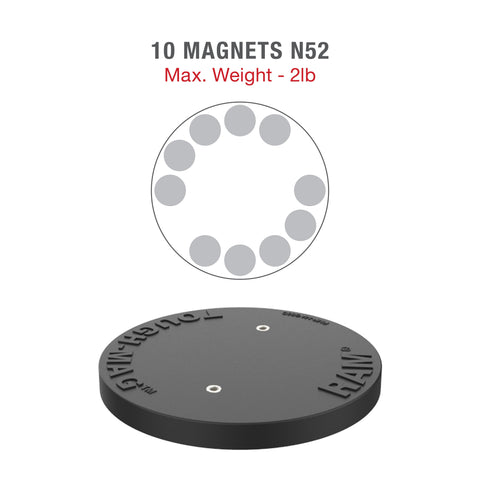

The RAM Single Pivot Magnetic Mount (RAP-101-PV4-NK-MAG88U) is a low-profile, magnetic mounting solution. One end features both 2-hole and 4-hole AMPS patterns to easily install any RAM holder or GDS dock while the other end features the RAM Tough-Mag magnetic base. This solution uses tooth-lock washers to allow users to pivot their device up to 180-degrees and utilizes a barrel nut instead of traditional adjustment knobs to provide tamper resistance, ideal for high-traffic environments. The RAM Tough-Mag base features 10 industrial-strength N52 grade magnets that magnetize to any ferrous metal surface and rubber coating that protects the metal surface you're attaching to.
Features
- Low-profile, magnetic mounting solution for heavy-duty environments

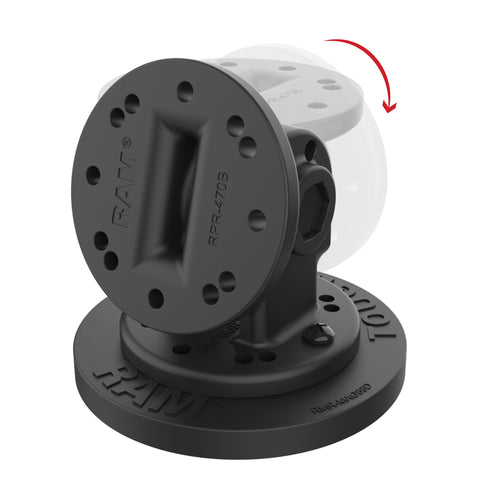

- Single articulation joint pivots up to 180-degrees; barrel nut provide tamper resistance

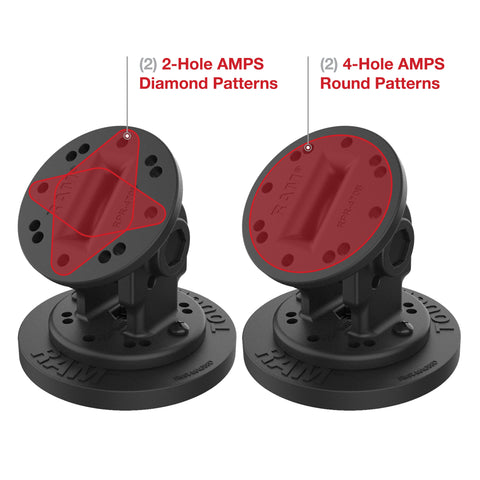

- One end features two 2-hole AMPS and two 4-hole AMPS patterns, second end features the RAM® Tough-Mag™ 88mm base
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
- Product Weight: 0.67 lb

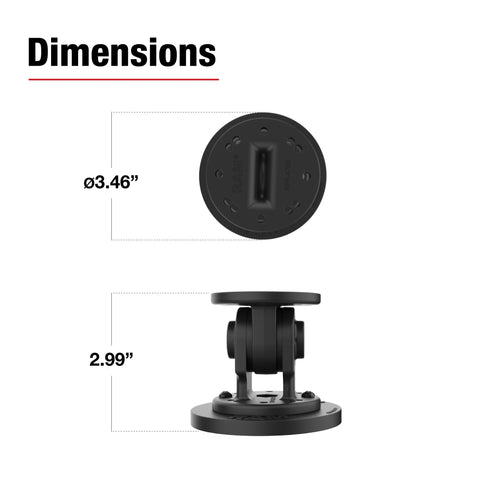

- Product Dimensions: Overall Height: 2.99"
- Hole Pattern: 4-Hole AMPS: 1.181" x 1.496" | 2-Hole AMPS: 1.912"
- Plate Size: Top Plate: 2.5" Diameter | Magnetic Base: 3.46" Diameter
- Materials: High strength composite
- Packaging Type: Poly Bag
- 1 x RAM® Single Pivot Magnetic Mount (RAP-101-PV4-NK-MAG88U)
